MIL-STD-1OOG

A40.1.5 Location of security markings on drawings. Security notations, such as espionage, special security and downgrading notes, shall be placed above the title block on classified drawings. Security classification shall be located within the body of the drawing (other than roll size) above and below the microfilm arrows. See Figure A-2. For sample location on roll size drawings, see Figure A-3.

A40.1.5.1 Security markings on roll size drawings. On roll size drawings security markings shall appear on both the face and the reverse of the drawing. The markings on the face of the drawing shall be shown in each drawing segment. The markings on the reverse of the drawing shall be shown on the corners. See Figure A-3.

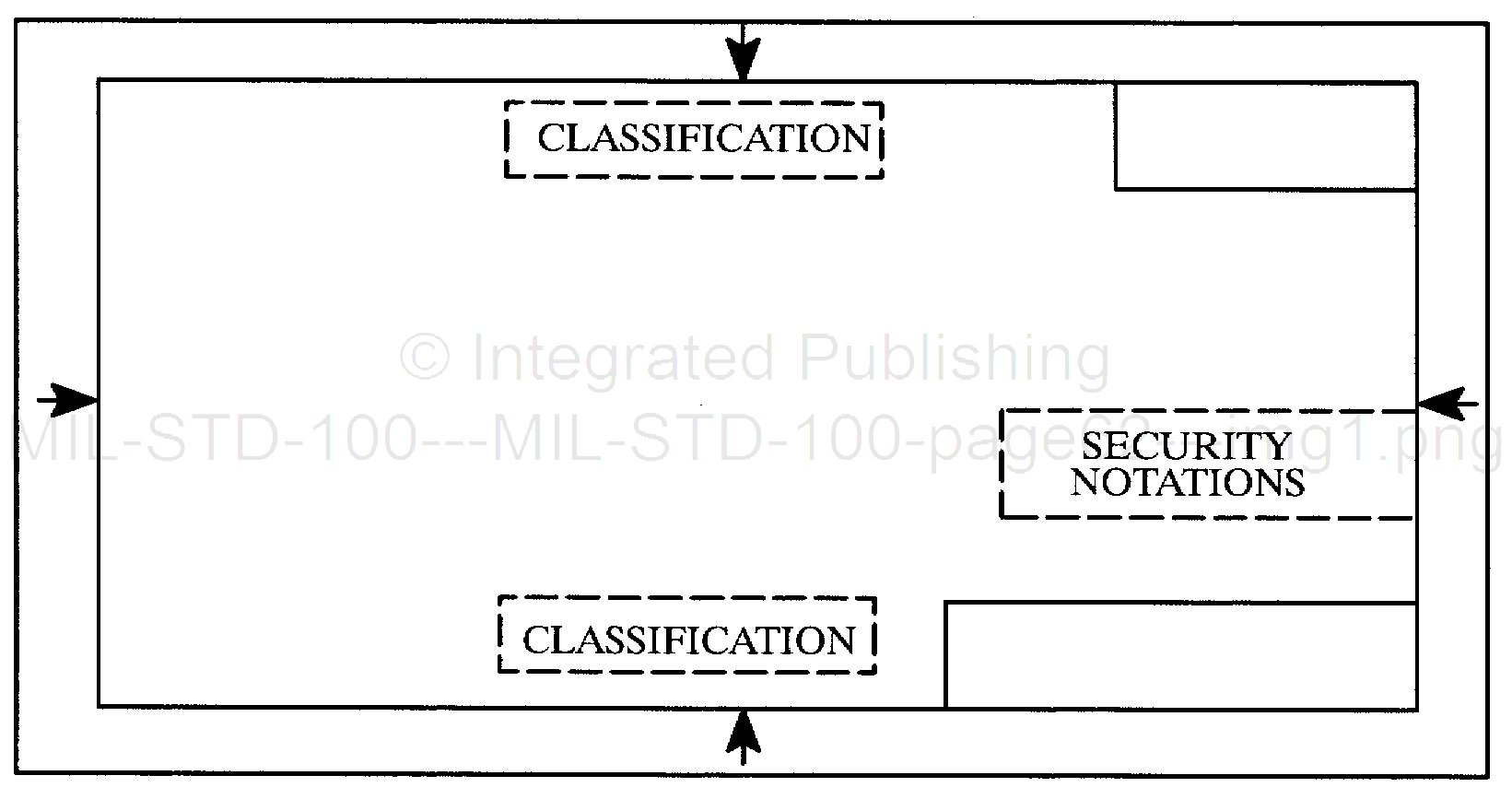

FIGURE A-2. Location of security markings on drawings.
