MIL-STD-100 Engineering Drawings S/S By Asme-Y14.100, Asme-Y14.24, Asme-Y14.35M, And Asme-14.34MThis standard, along with ASME Y14.100M, establishes the essential requirements and reference documents applicable to the preparation and revision of engineering drawings and associated lists for or by Departments and Agencies of the Department of Defense. ASME Y14.100M is the preferred requirements document for engineering drawing practices. This standard should only be used in lieu of ASME Y14.100M where the necessity for a DoD design activity is fully justified and Government logistics support is required

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 - 65 - 66 - 67 - 68 - 69 - 70 - 71 - 72 - 73 - 74 - 75 - 76 - 77 - 78 - 79 - 80 - 81 - 82 - 83 - 84


MIL-STD-1OOG


A40.1.7  Location of security markings on drawings in book-form. Security markings shall be placed on pages containing classified information.  Security notes shall be placed above the title block.  Security classification shall be placed at top of pages.  Place the following note on the title sheet.  "TITLE SHEET IS UNCLASSIFIED WHEN SEPARATED FROM SHEETS (List all Classified Sheet No.)."  See Figure A-6.

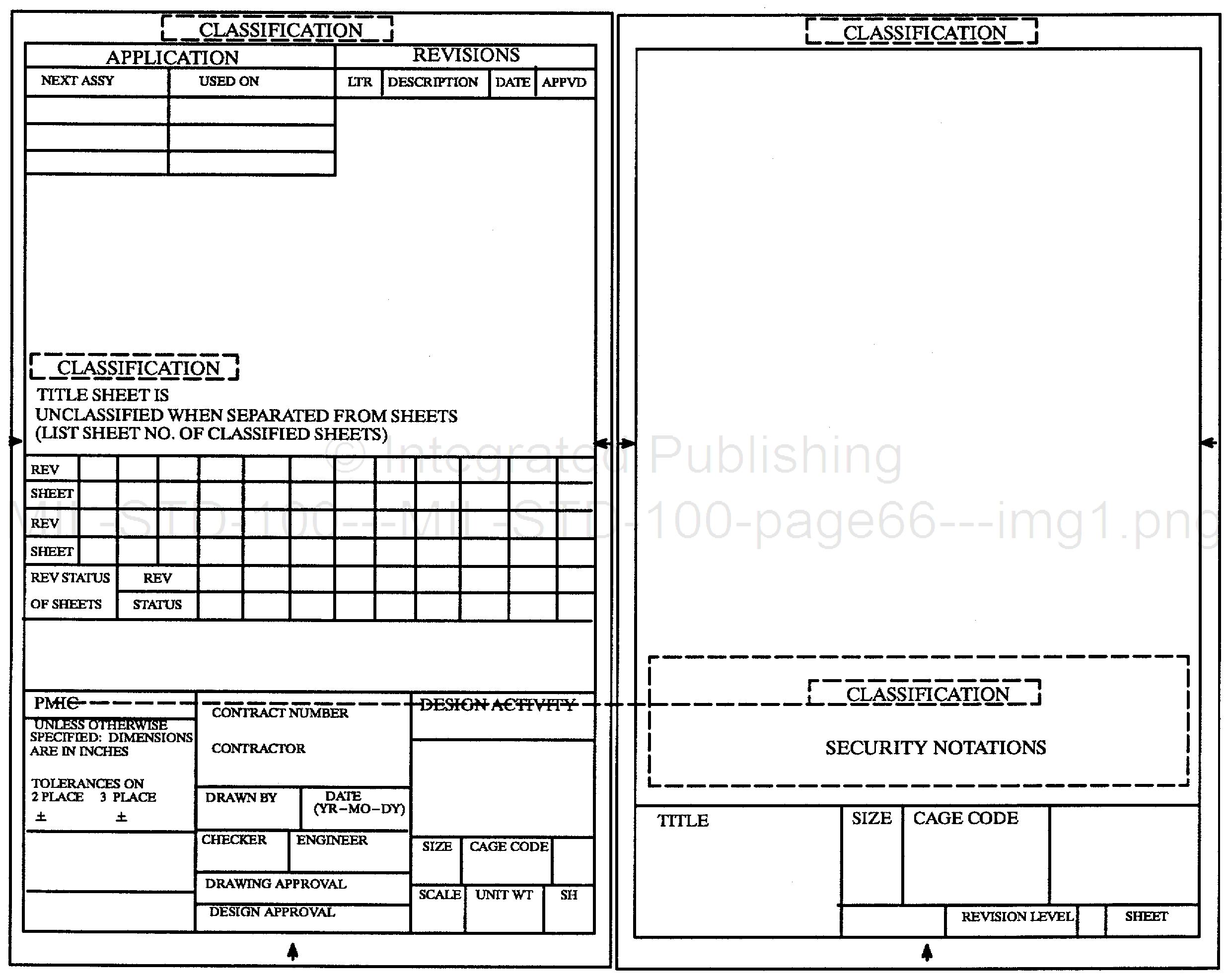

FIGURE A-6.  Location of security markings on drawings in book-form.
