MIL-STD-100 Engineering Drawings S/S By Asme-Y14.100, Asme-Y14.24, Asme-Y14.35M, And Asme-14.34MThis standard, along with ASME Y14.100M, establishes the essential requirements and reference documents applicable to the preparation and revision of engineering drawings and associated lists for or by Departments and Agencies of the Department of Defense. ASME Y14.100M is the preferred requirements document for engineering drawing practices. This standard should only be used in lieu of ASME Y14.100M where the necessity for a DoD design activity is fully justified and Government logistics support is required

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 - 65 - 66 - 67 - 68 - 69 - 70 - 71 - 72 - 73 - 74 - 75 - 76 - 77 - 78 - 79 - 80 - 81 - 82 - 83 - 84


MIL-STD-1OOG


A40.1.8  Regrading classification  Documents shall be regraded by either lining out or removing classification and related notes.  The current classification, except unclassified, shall be placed adjacent to the previous classification.  The reclassification action constitutes a change; therefore, an applicable entry in the revision history block in accordance with ASME Y14.35M is required. See Figure A-7 (Note: The indication of "OLD" and "NEW" shall not appear on the drawing).

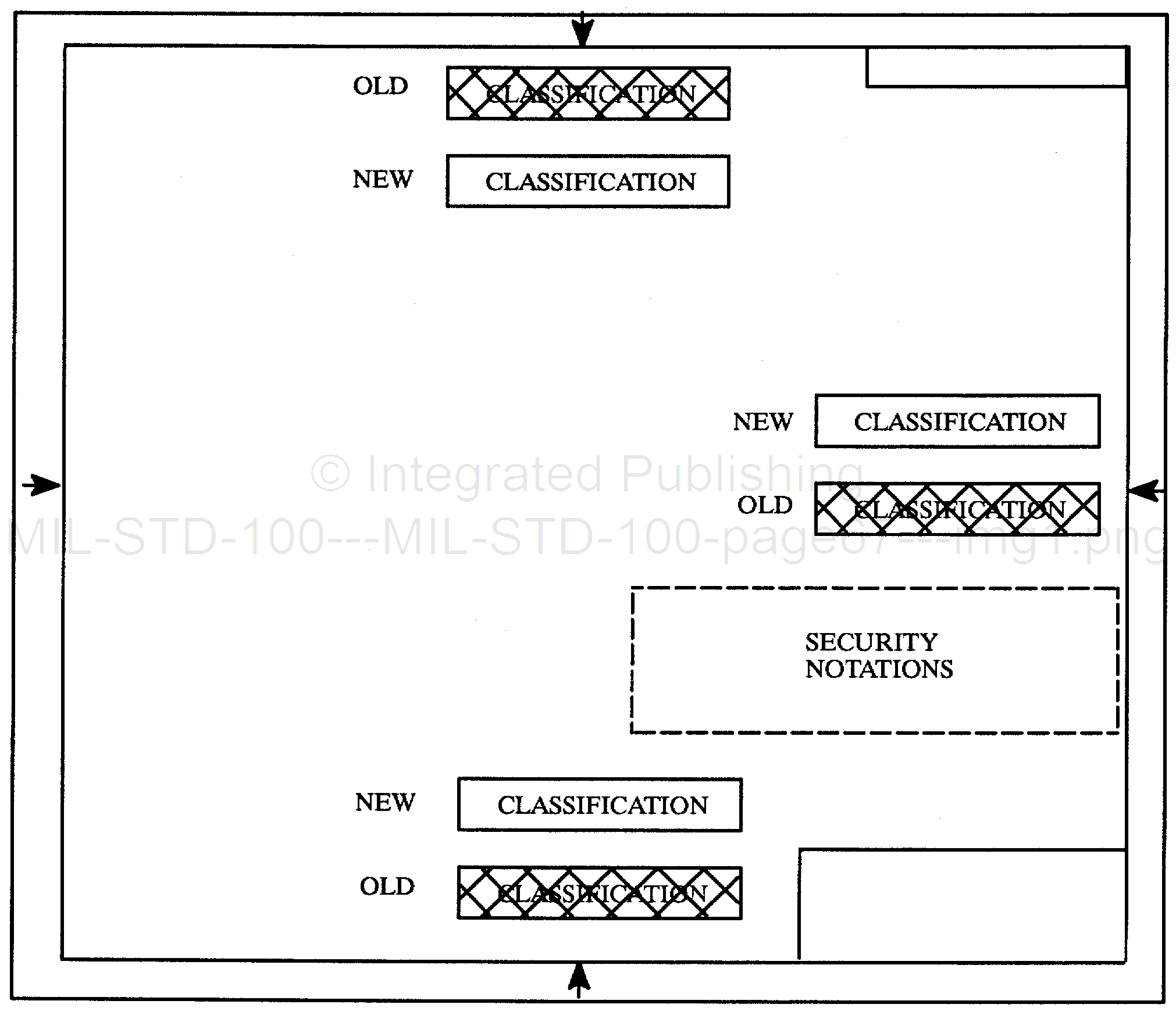

FIGURE A-7.  Regrading classification location.
